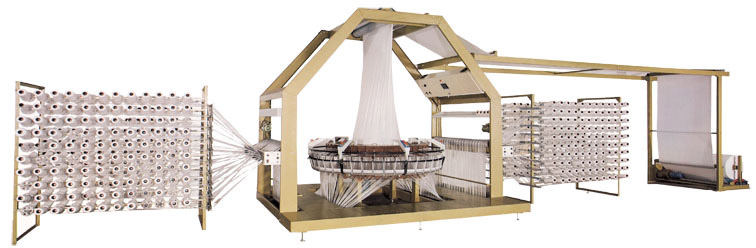

This circular loom of the flat cam structure, without oil lubrication, smooth operation, high efficiency, low consumption, greatly reduce production costs. Precision diameter wire tension automatic control system for the high-quality fabric provides a good condition. Improve the PLC control and advanced man-machine dialogue display frequency, making the equipment more convenient operation. For a variety of other types of woven bags, bulk bags, tarpaulins, geotextiles and other production and processing.
Technical Parameters:
|
SYZ-8 * 1550H eight shuttle small plastic cylinder knitting machine technical parameters |
|
|
Number of shuttles |
8 |
|
Host speed |
0-135r/min |
|
Main motor power |
4KW 4P |
|
Fabric width |
700-1250mm |
|
Applicable wire class |
PP/HDPE |
|
Up to the number of warp |
1092PCS |
|
Weft density |
Adjustable |
|
Bobbin Specifications (inner diameter * length) |
Φ38*230mm |
|
Weft winding diameter ingot |
Φ105mm |
|
Overall dimensions |
11.5*3.05*3.5m |
|
Total Weight |
4000kg |
|
Due to the design of continuous improvement, specifications and some changes might not notice. |
|
