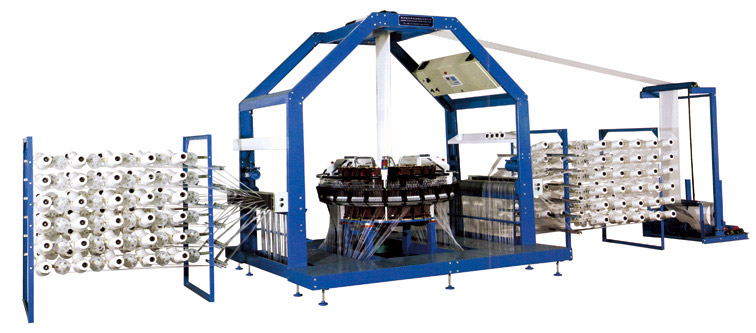

This is the most energy efficient cylindrical looms, the actual hour of electricity is only 1.5KW, also specifications smallest circular loom, the smallest folded diameter of only 100mm, is currently the fastest speed circular loom, the maximum speed can be up to 200 rev / min. Applicable to all types of small bags, rice bags, flour bags, cement bags, fertilizer bags.
Technical Parameters:
|
SYZ-4 * 650 flat cam speed small four shuttle circular loom technical parameters |
|
|
Number shuttle |
4 |
|
Host speed |
0-200rpm |
|
Main motor power |
1.5KW |
|
Fabric width |
100-600mm |
|
Applicable wire class |
PP/HDPE |
|
Up to the number of warp |
480Roots |
|
Weft density |
Be adjusted |
|
Brass Specifications |
¢38*230mm |
|
Weft winding diameter ingot |
maximum¢100mm |
|
Machine size |
8.5*2.5*2.9m |
|
Total Weight |
2000KG |
|
Due to the design of continuous improvement, specifications and some changes might not notice. |
|
