Moved picture on your mouse, magnifying the effect of visible product

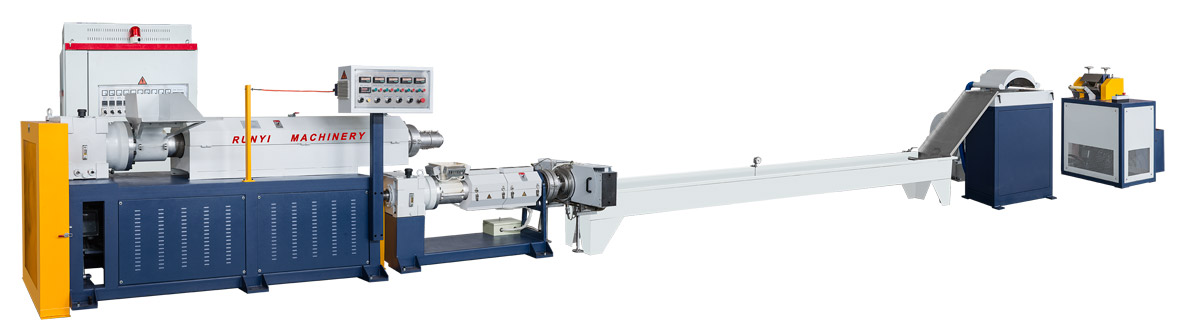

The machine makes clean-old woven bags, film, edge-material or other hot melt waste plastic into recycling use. All the main electric components adopt international top-quality product; the screw of extruder are especially processed by 38CrMoAlA top-quality steel material．Using this machine can improve the using ratio of waste material, reduce production cost, and bring obvious- economic benefits.
 |
 |

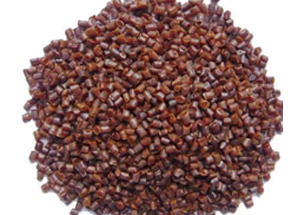

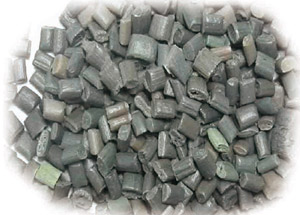

Finished Case:
 |
 |
 |
 |
Technical Parameters:
|
Model |
Double extruders recycling machine |
|
|
RY-140/120 |
RY-160/130 |
|
|
Item |
Parameter |
|
|
Screw Dia |
Φ140mm/120mm |
Φ160mm/130mm |
|
Ratio of L/D |
10:1 |
|
|
Material of screw and cylinder |
38CrMoAIA |
|
|
Holes of spinneret |
13holes |
15holes |
|
Power |
70KW |
90 KW |
|
Capacity |
80-120kg |
150-180kg |
|
Overall Size |
10000×2000×1500mm |
|
|
Total Weight |
about4T |
|
Specification and dimensions are subject to change without prior notice.
