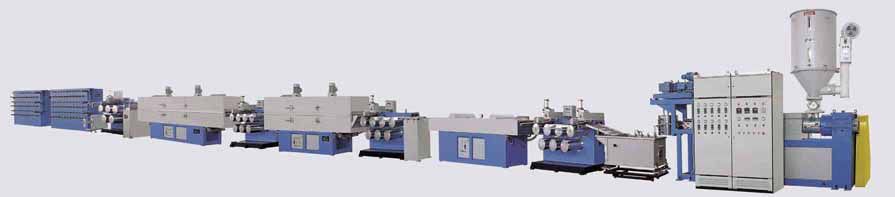

Nylon monofilament round wire unit to introduce and absorb advanced technology from Germany, PLC program control, frequency control and other advanced technologies. The main electrical components are used foreign high-quality products; extruder screw barrel adopts special processing 38CrMoAIA quality steel; cold water tank made of high quality stainless steel plate, five roller drafting machine gear box, monofilament drawing and stereotypes adopt advanced hot air oven, so that the unit's main technical indicators reached the international advanced level, its fast, high yield, low energy consumption, good forming quality of the monofilament. The entire unit compact structure, attractive appearance, smooth running, flexible and reliable control, sophisticated manufacturing technology, easy to operate, safe and reliable.
Technical Parameters:
|
Type/Parameter |
SYL-N series nylon monofilament unit |
||
|
SYL-M65×30-450 |
SYL-N65×30-650 |
||
|
Item |
Parameter |
||
|
Extruder |
a) Raw material：PA |
||
|
b) Dia.of monfilament：Φ0.18-Φ0.35㎜ |
|||
|
Screw Dia |
Φ65mm |
||
|
Ratio of L/D |
30:1 |
||
|
Material of screw and cylinder |
38CrMoAIA |
||
|
Rotate speed of screw |
25-100rpm |
||
|
Spinning Die |
1set |
||
|
Number o holes |
120 pcs |
150pcs |
|
|
Shapping unit |
single stretching unit |
||
|
Winder |
132Spindles |
156Spindles |
|
|
Winding size and type |
Φ46×500mm，Olivary form(optional) |
||
|
System capacity(about) |
194KW |
210KW |
|
|
Overall size(L×W×H) |
40200×2300×1970mm |
42300×2420×1970mm |
|
|
Weight |
28T |
29T |
|
Specification and dimensions are subject to change without prior notice.
